Ever wondered how salt guns work? It’s all about precision mechanics! A pump mechanism generates air pressure to blast salt at high velocity, targeting pesky bugs.
Components and Design Considerations
Salt Reservoir
The salt reservoir in a bug salt gun is designed to be moisture-proof and durable, ensuring smooth operation and multiple shots before a refill is needed. Polypropylene (PP), polyethylene (PE), acrylonitrile butadiene styrene (ABS), and polyvinyl chloride (PVC) are common plastics used in reservoirs.
Pump Mechanism
Like in a water squirt gun, the pump mechanism in a salt gun creates the air pressure to propel the salt. The user primes the gun by pulling back a handle or lever, which compresses a spring. This stored energy is released by pulling the trigger, generating a burst of air that pushes the salt out of the barrel at high speed. The pump design must be robust enough to generate sufficient pressure while being easy for the user to prime.
Barrel
The barrel guides the salt from the reservoir toward the target. It is designed to focus and direct the air pressure generated by the pump mechanism. The barrel’s interior design ensures that the salt particles are accurately and efficiently directed toward the target.
Trigger Mechanism
The trigger controls the release of the stored energy in the pump mechanism. When squeezed, the trigger releases the spring, allowing the compressed air to propel the salt out of the barrel. The trigger should require minimal force to operate, ensuring ease of use, and must be designed to prevent accidental discharge.
Salt Dispersion System
This system ensures that a consistent amount of salt is loaded into the barrel for each shot. It’s typically a simple gravity-fed system. Metering valves and flow control valves manage the quantity and flow of salt that moves from the reservoir into the dispersion chamber. They ensure that each shot has a consistent amount of salt, maintaining the effectiveness of each blast. The system must be designed to prevent clogs and ensure a uniform salt spray with each shot.
Safety Mechanism
Salt guns often include a safety mechanism to prevent accidental discharge. This could be a simple switch that locks the trigger or a more complex system that deactivates the pump mechanism when not in use.
Body/Casing
The body of the salt gun is typically made from durable plastic material. It needs to be lightweight yet sturdy enough to withstand repeated use. The design is often ergonomic, allowing for easy handling and aiming.
Sights/Aiming Mechanism
Many salt guns are equipped with basic sights to improve accuracy. Depending on the model, these can be simple iron sights or more advanced optical systems. The aiming mechanism helps users target small bugs effectively, ensuring the salt spray hits its mark.
Steps for Operation
Loading the Salt
Priming the Gun
Aiming at the Target
Firing
Repeat

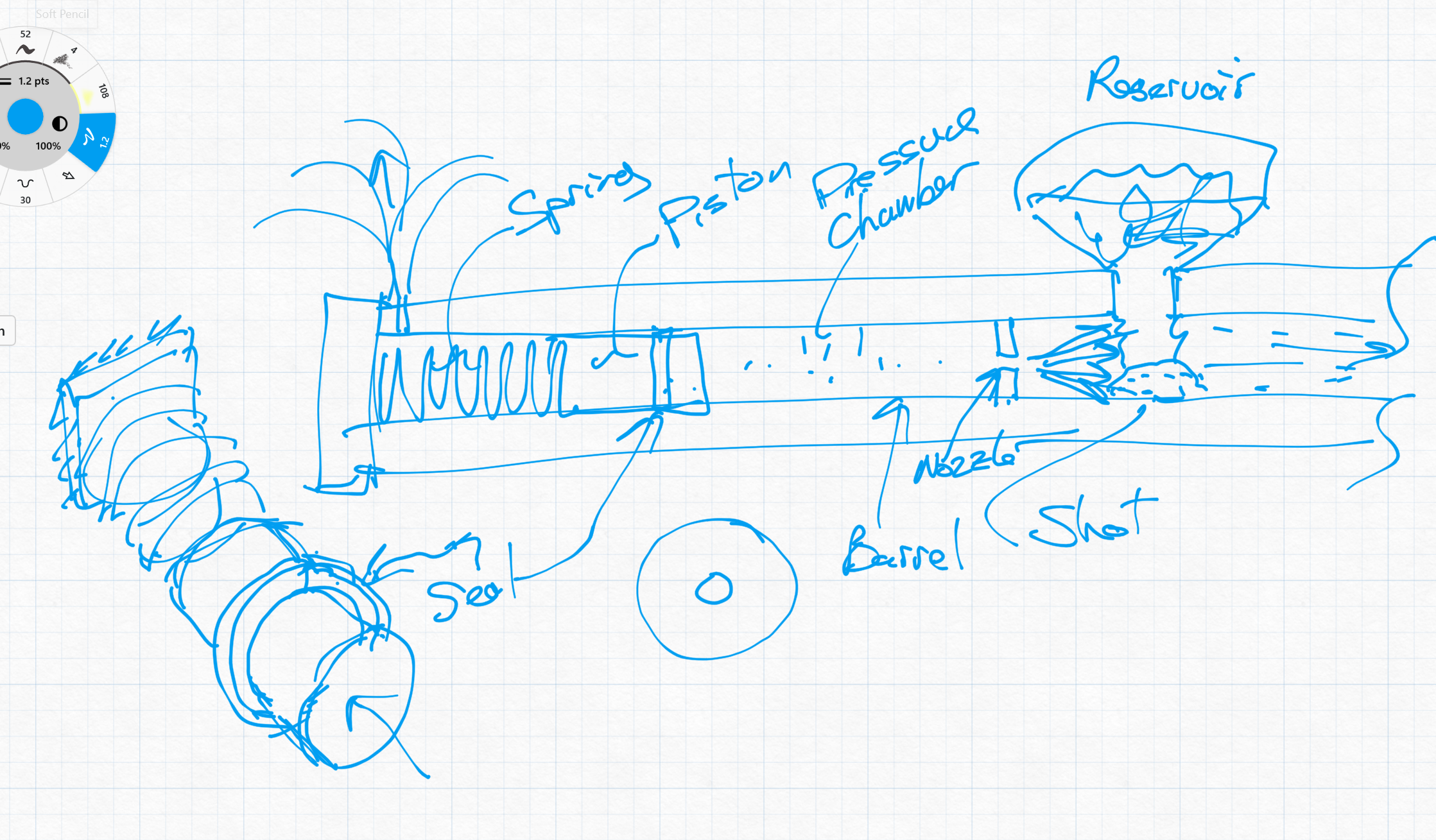

Mechanical Drawing Example
A typical mechanical design includes:
Salt Reservoir: moisture-proof and durable
Hand Pump Mechanism: a compressed spring creates a powerful burst of air
Barrel Design: guides the salt precisely toward fast-moving insects
Trigger Mechanism: smooth operation with minimal force and maximum impact
Valve, Seals, and Gaskets: ensures each shot delivers just the right amount of salt
Body: ergonomic for easy handling
Safety Mechanism: mechanisms to prevent accidental firing
Summary
Behind every salt gun is thoughtful engineering. From loading salt to pulling the trigger, thesedevices showcase the ingenuity of air pressure in practical and fun to use design.
